OTA upgrade solution for automobile

OTA The trend of industry development
01
Component level OTA
2012-2015

车机/Tbox零部件OTA

ECU供应商定义OTA能力

TSP供应商整合OTA管理网页

02
Vehicle level OTA
2015-2019

设计整车OTA系统

座舱/车身/三电 相关ECU

适配性/稳定性/安全性

专业OTA供应商定制化端

对端整体升级策略方案

03
Enterprise level OTA
2019-2021

整车厂软件管理系统

跨部门协同

串联研发/生产制造/市场/售前售后各应用场景

云诊断服务配合

汽车软件生命周期管理

04
Industrial grade OTA
2021-

软件可售化功能及服务体系

面向服务的汽车软件架构

整车/域控制级别应用软件管理

ECU级别软硬件管理配置

国家及行业的参与制定

法规监管平台

艾拉比OTA——面向服务的OTA解决方案
  • •••••
  • 数字化营销

  • 智能驾驶/计算

  • 关重件管理

    新能源32960

    国六17691

    动力电池溯源

  • 诊断/质量

  • 智能座舱人机交互
    汽车软件管理

    汽车软件数据管理

    车型、控制器管理

    软件特征管理

    固件、标定、配置字

    车载APP,地图,算法管理

    汽车软件业务

    FOTA+SOTA+DOTA

    升级模式配置

    策略创建、审批、发布

    控制器/应用/地图/算法升级

    车辆

    电子电器 自动驾驶
    传动系统 故障诊断

    软件包下载、验签、解密

    升级条件判断

    安全刷写

    状态上报

    车端
  • •••••
  • 数字化营销

  • 智能驾驶/计算

  • 关重件管理

    新能源32960

    国六17691

    动力电池溯源

  • 诊断/质量

  • 智能座舱人机交互
    汽车软件管理

    汽车软件数据管理

    车型、控制器管理

    软件特征管理

    固件、标定、配置字

    车载APP,地图,算法管理

    汽车软件业务

    FOTA+SOTA+DOTA

    升级模式配置

    策略创建、审批、发布

    控制器/应用/地图/算法升级

    车辆

    电子电器 自动驾驶
    传动系统 故障诊断

    软件包下载、验签、解密

    升级条件判断

    安全刷写

    状态上报

    Cloud
  • •••••
  • Digital marketing

  • Intelligent driving / computing

  • Key parts management

    新能源32960

    国六17691

    动力电池溯源

  • Diagnosis / quality

  • Human computer interaction in intelligent cockpit
    Automotive Software Management

    汽车软件数据管理

    车型、控制器管理

    软件特征管理

    固件、标定、配置字

    车载APP,地图,算法管理

    Automotive Software Business

    FOTA+SOTA+DOTA

    升级模式配置

    策略创建、审批、发布

    控制器/应用/地图/算法升级

    vehicle

    电子电器 自动驾驶
    传动系统 故障诊断

    软件包下载、验签、解密

    升级条件判断

    安全刷写

    状态上报

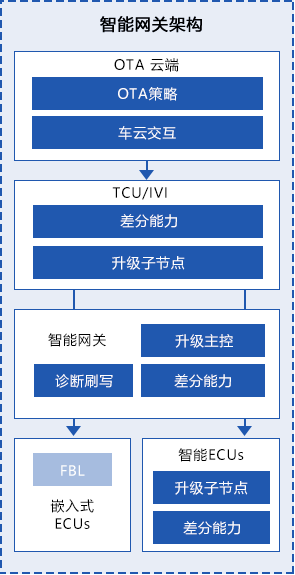

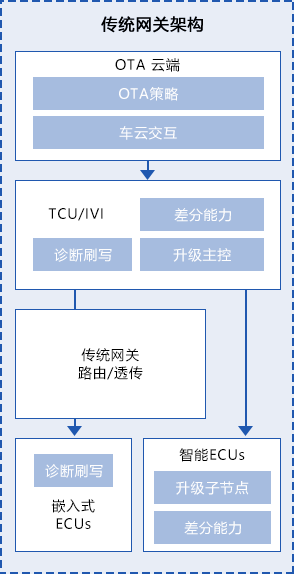

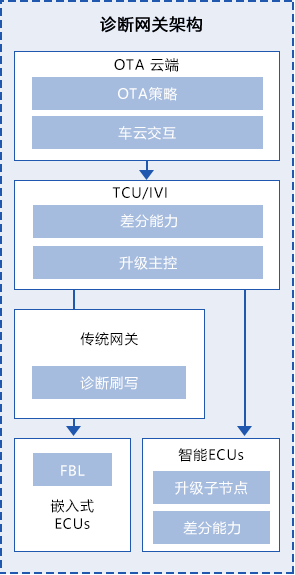

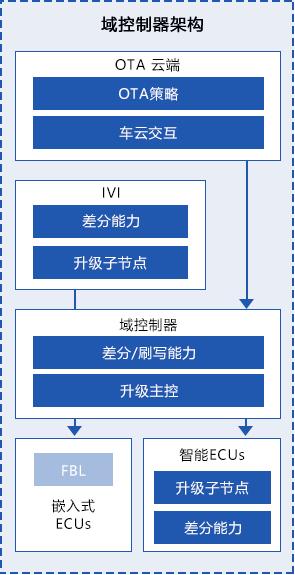

    Compatible performance and adaptation to multiple EE architectures
  • Core advantage

    Product capability

    We have 100% independent intellectual property rights, managed 80 million sets of various types of equipment, and successfully upgraded hundreds of millions of times of stability verification.

    The product line covers auto OTA System, auto diagnosis service system, auto software management and operation system, auto bus protocol software.

    Industry influence

    Assist customers in automobile field to build their own OTA management system and standards.

    Cooperate with relevant national authorities to draft relevant sections of Ota national standard.

    Technical service capability

    The largest OTA technology R & D and service team in China.

    Industry leading response speed, product customization capabilities.

    The ability certification and experience of 25+ OEM, 40+ model project and 40+ Tier1 in the automobile industry are accumulated.

    Differential technology,Efficient upgrade

    Allabi difference algorithm,All major operating systems are supported(Linux、QNX、GENIVI等),Ability to produce very small differential subcontracting,According to a large number of experimental data statistics results,The size of the differential packet is only half of that of the whole packet 5% !

    For example, the whole package is 100K,Common compression is 63K,Alabi algorithm package is 5k。

    Patent number:201810004062.8/201810004038.4/201910866804.2

    Six security mechanisms,Escort for safety
  • Rollback mechanism

    Support rollback to pre upgrade version;

    Support dependency ECU Roll back all。

  • Disaster recovery backup mechanism

    be based on SOA(Service oriented)Software architecture,Redundancy design for important services。

  • Differential upgrade

    Independent research and development of differential upgrade algorithm,Adapt to a variety of operating systems,Reduce upgrade package,Shorten download time,High reliability。

  • Anti brick mechanism

    A/B Upgrade support;

    Security kernel,Verification mechanism;Pre upgrade mechanism。

  • Power cut continues to rise

    The car upgrade control program has upgrade status memory function,Abnormal power failure,After the power is restored, the upgrade can continue

  • Retrial mechanism

    According to each ECU Upgrade error code,Try again by different mechanism;

    The number of retries is configurable in the cloud

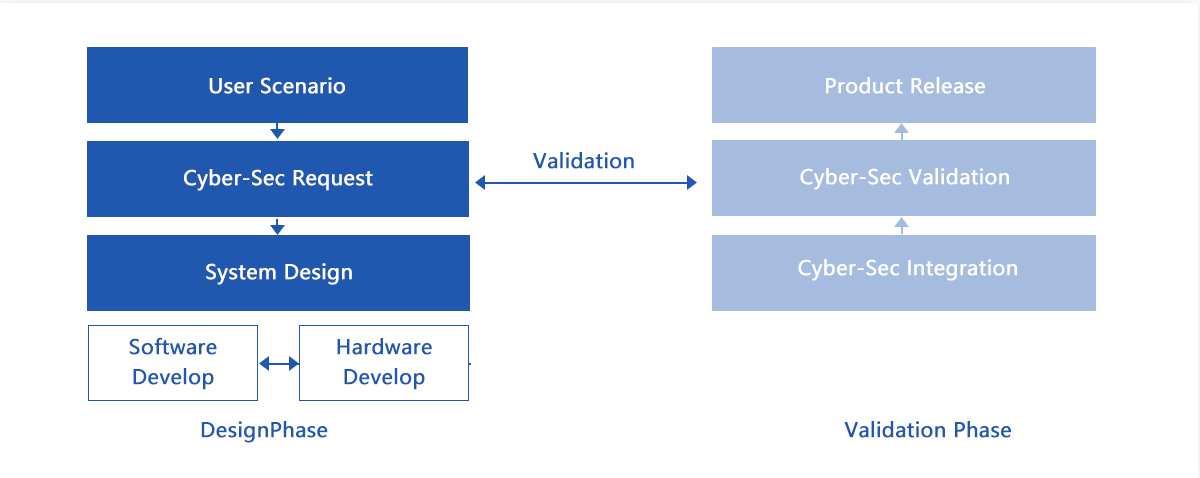

  • Join hands with security manufacturers,Build information security
    Power cut continues to rise
    Araby offers complete OTA Business information security solutions,Through continuous cooperation with the industry's top security infrastructure providers and security testing service providers,Araby OTA The solution has passed the information security acceptance of all cooperative vehicle factories。Have the case of cooperating with the main engine factory to pass the third level of equal protection。
